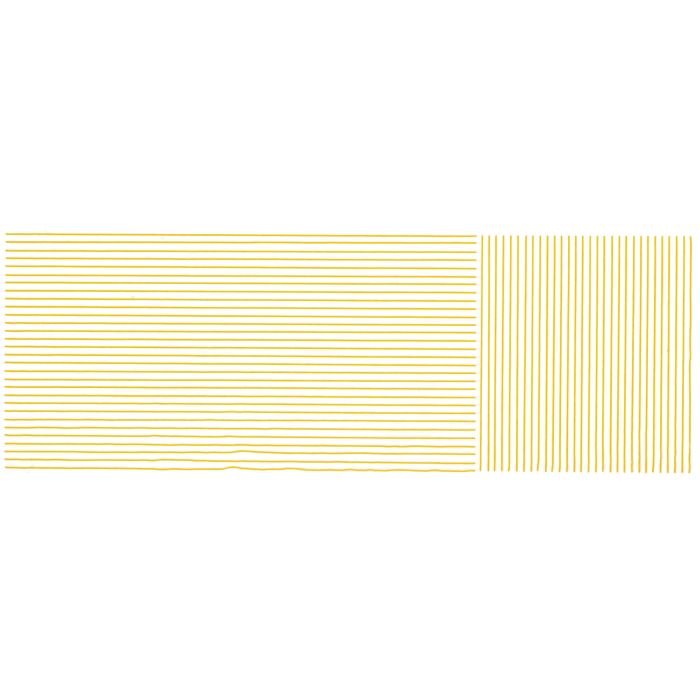

SR Bulleid Pacific locomotive stripes

Bulleid Pacific locos in Southern Green livery had three horizontal yellow stripes each side running from end to end of both loco and tender. The middle and lower stripes are continuous across the cab front. The upper two stripes on the loco are normally just above and below the cab windows, though just a little higher on the green 'Merchant Navy' clam locos turned out in 1941.

The bottom stripe is just over its own width (about 1mm) above the bottom of the easing over the wheels. On the 'Merchant Navy
