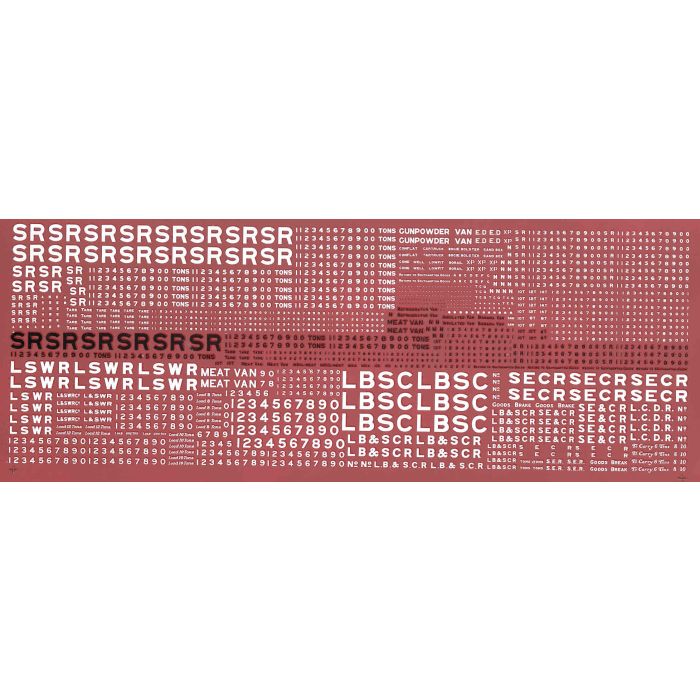

SR goods vehicle insignia (inc. pre-Grouping)

SR 1923-36 livery (top right of sheet)

Letters were normally, as large as would fit. Ordinary wagons and vans usually had number bottom left of side in the larger (5") figures with e.g. TARE 7.2. 1 bottom right and load e.g. 10 TONS above it. Letter N if non-common user at extreme ends alongside or below number and tonnage. Cattle wagons had large SR on side, number in small figures on solebar. Other markings on left side of ends: number (5") just above halfway up with 5" SR above it TARE 6. 13. 1 etc., just above drainage gap at bottom and 10 TONS etc., halfway between.

SR 1936 - 47 livery (top left of sheet)

Number (4" size) bottom let capacity (e.g. 7. 10 (no words)) but sometimes as e.g. 8. 1.0 with T.C.Q. above. Letters N as before when applicable, but at left hand end only after 1940. Special vehicle markings (top, left of centre of sheet) were common to both periods - positions vary according to type of vehicle. Venetian red insignia is for Meat vans etc. painted stone colour - these sometimes had white letter N.

LONDON & SOUTH WEST Small letters L&SWR used until 1895-1900 when the large letters LSWR were used where space permitted with the smaller size on low sided vehicles (e.g. bolsters). Numbers were usually in 6" figures - position varied but open wagon typically had number at right second plank up with load below it in script. Tare shown e.g. 6.18.2 (no word) at left in 2
